Inline High-Speed Real-Time Inspection Series/YS-8500 For SMT Production Line

Product Categories

YUSH Electronic Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Inline HighSpeed RealTime Inspection SeriesYS8500 For SMT Production Line
Brand: YUSH
Price: 12800 USD

Brand Name : YUSH

Model Number : YS-8500

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu

MOQ : 1 SET

Price : USD 12800~17800

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10 sets/ month

Delivery Time : 7days

Packaging Details : Plywooden case

×-Ray Tube Type : OpenMicrofocusTransmittedRaySource

Tube Voltage Range : 25-160KV

Tube Current Range : 0.01mA~1.0mA

Maximum Tube Power : 64W

MaximumTarget Power : 10W

Contact Now

Inline High-Speed Real-Time Inspection Series/YS-8500 For SMT Production Line

Application Advantages

With planar CT function(PCT),it can be applied to 3D/CT inspection of printed circuit boards,SMT,IGBT,wafers,etc.
With cone beam CT function,it can be applied to the inspection of sensors,relays,micro motors,materials, and aluminum castings

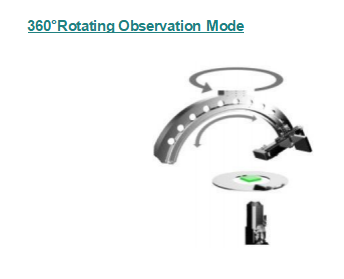

Convenient 360°fixed-point observation mode
2D void inspection software module(optional)
3D measurement and analysis software module(optional)

Application Fields

Soldering quality inspection of solder joints on PCB,BGA components,integrated circuits(IC)and their bond

wires inspecton,semiconductor package inspection and internal connection,electronic power(IGBT)module

inspection,Wafer defect inspection(WLCSP)
Inspection of sensors,relays,fuses,coils,micro drive systems and air bag control systems,micro motors (MEMS,MOEMS),cables and plugs,plastic parts, various materials such as plastics,ceramics,biological materials,optical components,small titanium and aluminum castings

Product Parameters

Model No.		YS-8500
X- Ray Tube	×-Ray Tube Type	Open Microfocus Transmitted Ray Source
	Tube Voltage Range	25-160KV
	Tube Current Range	0.01mA~ 1.0mA
	Maximum Tube Power	64W
	MaximumTarget Power	10W
	Micro Focus Size	<1μm
Flat Panel Detector	Flat Panel Type	A(O(m)pt(o)io(rp)n(h)a(o)lu)s Silicon Flat Panel Detector
	Pixel Matrx	1536x1536
	Field of View	130mmx130mm
	Resolution	5.8Lp/mm
	Image Frame Rate(1× 1)	20fps
	AD Conversion Digits	16bits
Equipment Specifications	Maximum Sample Size	750mmx650mm
	Maximum Inspection Area	550mmx550mm
	Image Geometric Magnification	2000X
	Input Powe	n 220V 10A 50-60Hz
	Operation System	del Precision T7920 Image Workstatio
	Dimensions	L1600mm×W1700mm×H2000mm
	Net Weight	About 2950 KG
